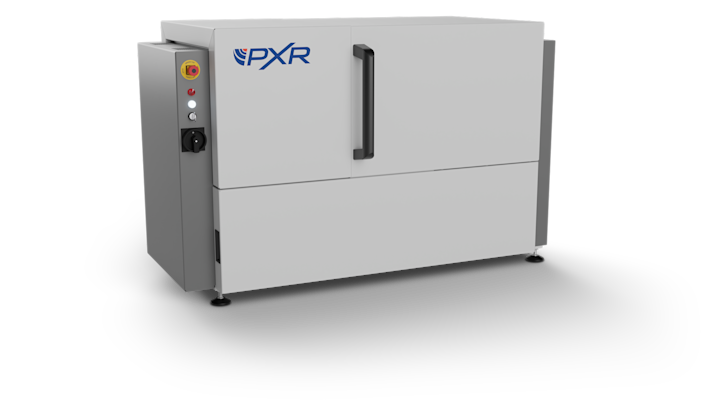

CT-MINI

CT-MINI, - the Original- , with minimal space requirement, inspecting plastics, ceramics, and metals. This 3D-CT, from ProCon X-Ray GmbH “performs as laboratory micro CT by excellent CT results in real-time”, comment of Norman Schott, our Applications Specialist.

The room-saving CT-MINI can be equipped with micro-focus X-ray tubes from 90 kV up to 130 kV, depending on specific customer requirements. The focus-detector distance can be adjusted to optimize the contrast.

A range of flat panel detectors is available, to adapt customer´s requirement. A sliding door opens wide in order to easily mount the specimen up to 200 mm onto the rotation table. The horizontal oriented X-ray beam helps to avoid gravity effects during scanning.

The CT-MINI system is ideal for nondestructive testing (NDT), materials analysis, rapid prototyping, and because of its fast on-line reconstruction capable for a production guided process control.

Features

  • Industrial X-ray Computed Tomography (CT)
  • 3D volume CT
  • Non-destructive testing (NDT) – 2D and 3D
  • Quality control independent of material
  • Defect recognition (voids, cracks, …)
  • Contactless metrology
  • CT reconstruction in real-time
  • Easy operation
  • Radiation safety better than 1 µSv/h
  • Desktop system
  • Mobile deployable
